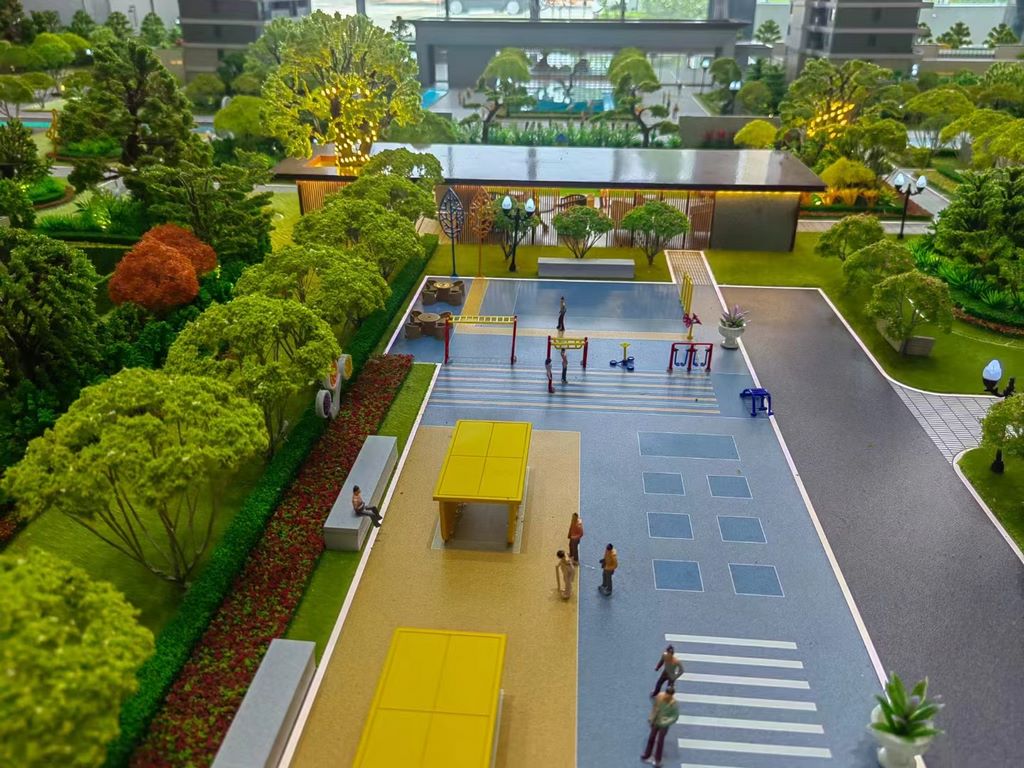

Common problems in sand table model making

The Twelve Major Technical Challenges in Sand Table Model Making and Industry Solutions

1. Core Issues in the Foundation Construction Phase

Scale Discrepancy Trap

Typical Symptoms: Imbalanced proportions between building heights and road widths in the planning area (e.g., 1:100 buildings paired with 1:50 roads)

Professional Correction: Utilize laser 3D scanners for reverse modeling and establish a BIM data verification mechanism

Material Texture Distortion

Common Mistake: Using PVC panels to simulate stone results in rigid textures

Process Upgrade: CNC-carved natural stone tiles combined with mineral pigment hand-painted aging (error ≤ 0.2mm)

II. Key Challenges in Craftsmanship Implementation

Structural mechanical defects

Collapse case: The model of the cross-river bridge had insufficient load-bearing capacity (load < 5 kg)

Engineering-grade reinforcement: 304 stainless steel frame (diameter 1.2mm) + carbon fiber-reinforced epoxy resin

Electrical system risks

Accident data: 12V low-voltage circuit causing fire (wire diameter <0.3mm²)

Safety standards: Circuit breaker devices + flame-retardant conduit (UL94-V0 certified)

Color reproduction deviation

Industry pain point: RAL color chart vs. actual scene discrepancy >20%

Optical solution: Spectrophotometer color calibration + UV-cured nano-coating

III. Critical Issues During the Demonstration Phase

Failure of Dynamic Components

Failure statistics: 42% of rotating platforms stopped due to motor overheating

Electromechanical solution: 57 stepper motors (0.5A per phase) + harmonic reducer (gear ratio 1:120)

Transportation damage spectrum

Insurance data: 63% of delicate components detached during transportation

Military-grade protection: Silicone mold nesting + air column cushioning system (G-value < 50)

IV. Breakthroughs in Cutting-Edge Technology

Digital Twin Applications

Precision Breakthrough: 3D laser radar scanning (0.05mm resolution) reverse modeling

Smart Interaction Revolution

Cost Optimization: LoRa wireless networking control (node < ¥80/unit)

Ecosystem Simulation Innovation

Patented Technology: Microfluidic chip simulation of real water systems
