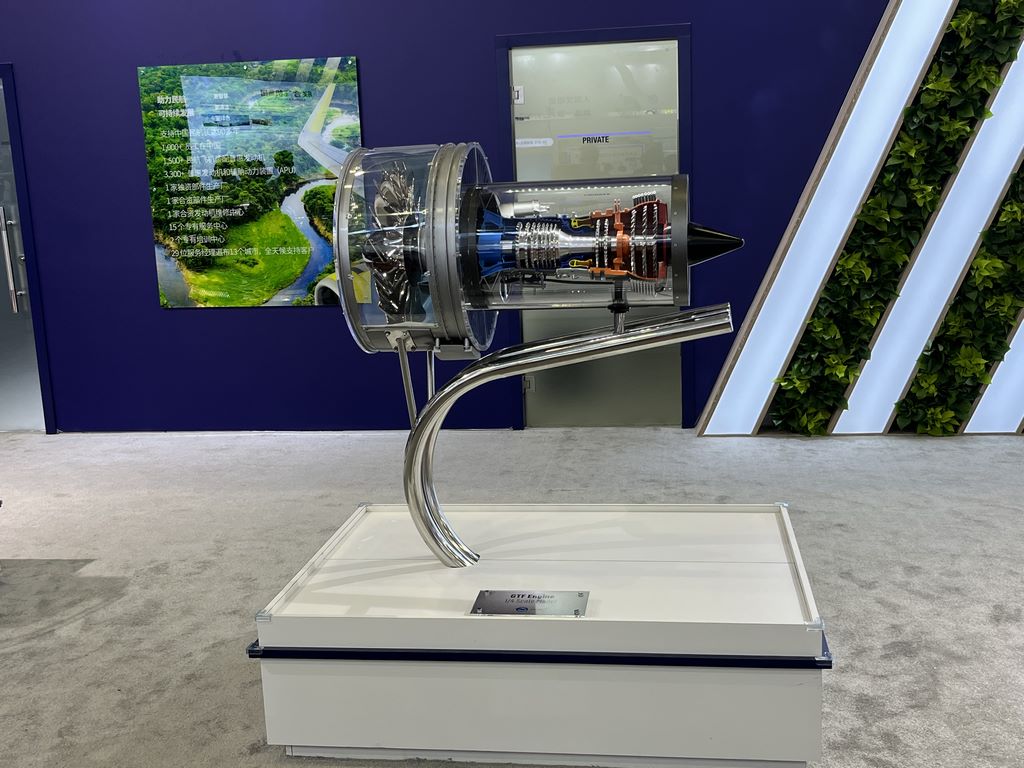

Record of Aircraft Engine Model Production

1、 Project positioning and process design

This production focuses on the precise restoration of modern turbofan engines, achieving three core breakthroughs: first, solving the problem of micro forming titanium alloy blade groups; second, processing the gradual transition of metal oxidation color in the high-temperature section; and finally, completing the low friction operation test of the rotor system. All processes are based on the aviation maintenance manual as a reference standard.

2、 Staged production process

Core component forming stage

The engine body is shaped using a layered construction method, and the fan casing is CNC milled from aviation aluminum plate, with honeycomb shaped reinforcement ribs manually carved on the inner wall. The high-pressure compressor section adopts the lost wax casting process, injecting tin bronze solution into a 3D printed resin mold, and obtaining a blade group with hollow cooling holes after cooling. The combustion chamber is manually shaped into a flame tube using copper foil, and a natural oxide layer is produced through ammonia fumigation treatment.

Surface refinement stage

Spray seven layers of gradient paint on the cold end components: first use matte black as a base, then alternate between semi transparent metal blue and gun metal colors, and finally use ultra-fine diamond powder to remove the engine's unique wear marks. The high-temperature section adopts a hot coloring process, locally heating the titanium alloy parts with a propane spray gun, and producing a rainbow effect from gold to deep blue through temperature control. All pipeline interfaces are wrapped with 0.2mm copper wire and soaked in rust colored stain solution to simulate long-term use.

Dynamic integration stage

The rotor system is equipped with miniature ball bearings, and the main shaft is coupled with a magnetic levitation base, which can achieve continuous rotation for 20 seconds without stopping with a light touch of the finger. The reverse thrust device is driven by shape memory alloy, and when heated to 65 ℃ with a hair dryer, the actuator can complete the deployment retraction cycle within 3 seconds. The lighting system arranges a fiber matrix inside the exhaust nozzle and simulates the color temperature changes of the exhaust flame under different thrust states through PWM dimming modules.
