Sand table model production factory for hydrogen energy application scenarios

Analysis of the entire process of making a sand table model for hydrogen energy application scenarios

1、 Project Background and Design Concept

The sand table model of hydrogen energy application scenarios reproduces typical scenarios of the hydrogen energy industry chain at a scale of 1:100, including four modules: hydrogen production stations, storage and transportation equipment, hydrogen refueling stations, and terminal applications. The model adopts a modular design concept, achieving a 90% scene restoration degree, with a focus on highlighting the clean characteristics of hydrogen energy and industrial aesthetics.

2、 Core material selection strategy

1. Main structural materials

Aviation grade PVC board: 3mm thick board laser cut building contour, surface polished with sandpaper to present industrial texture

Stainless steel wire mesh: simulating the metal frame of hydrogen energy equipment, enhancing the reflective effect through electroplating treatment

Acrylic gradient sheet: making transparent components for hydrogen pipelines, with built-in LED light strips to simulate gas flow

2. Scene presentation materials

Mineral pigment base: blending gray blue color scheme to depict modern industrial scenes, using dry sweeping techniques to highlight the mechanical feel of equipment

UV resin terrain: casting micro mountainous terrain and embedding fluorescent powder to simulate nighttime work scenarios

Metal etching sheet: precision machining equipment nameplates, safety signs and other detailed components

3、 Layered production process

1. Infrastructure construction

Installation of PVC main frame using mortise and tenon structure, with key connection points reinforced with epoxy resin

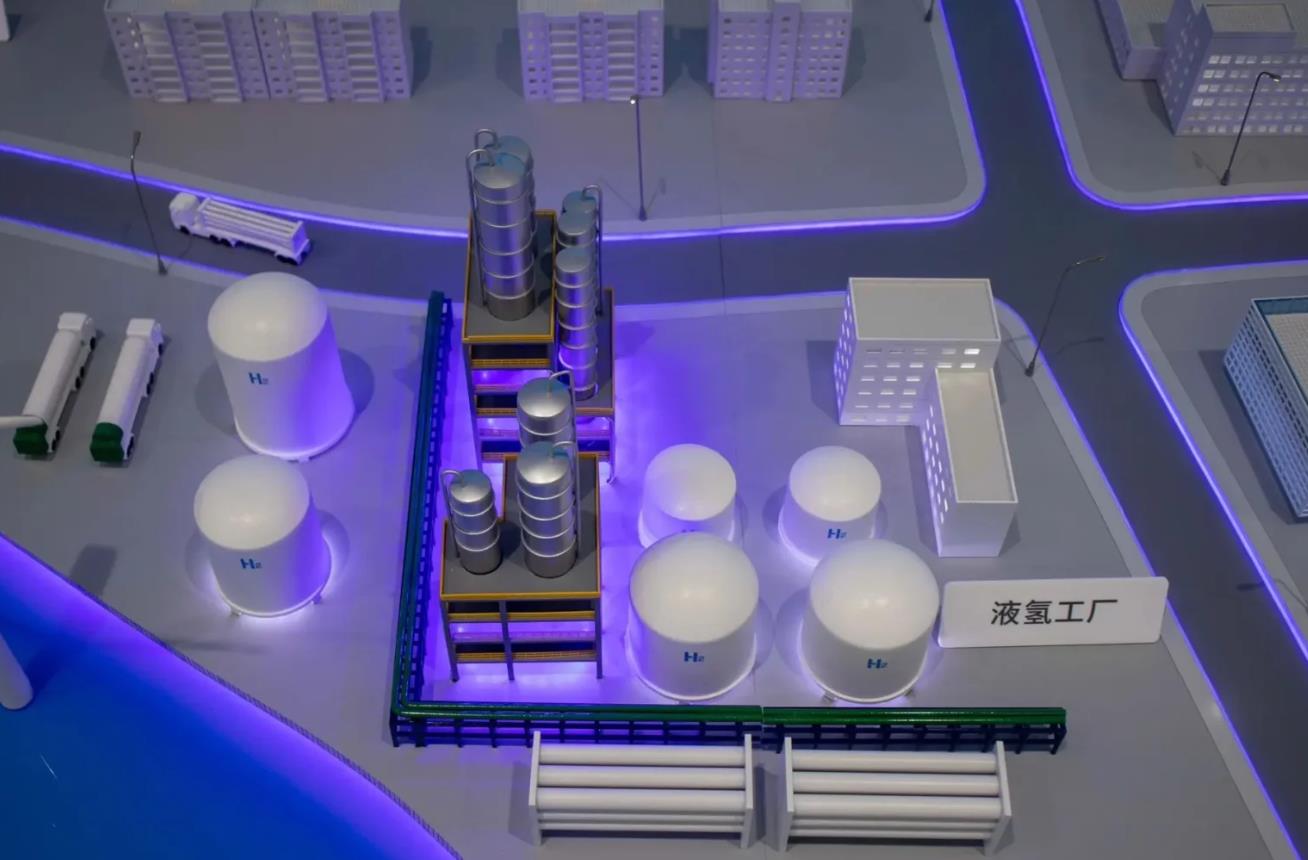

The hydrogen storage tank uses 3D printed hollow shell, and is filled with transparent gel to simulate liquid hydrogen

The hydrogen refueling station canopy is made of 0.5mm copper wire woven mesh and sprayed with matte paint to restore the metal roof

2. Dynamic system integration

Micro air pump system: Transparent silicone tubing connects various nodes, and a micro fan drives airflow circulation

Fiber optic transmission system: 0.5mm fiber optic bundle simulates the refueling process of hydrogen powered vehicles

Magnetic module: replaceable fuel cell vehicle model, with embedded magnets in the chassis for quick positioning

4、 Multi stage coloring process

1. Base treatment

Industrial equipment uses metal paint as a base, combined with sponge tapping to create a rusting effect

The building facade is coated with multiple layers of enamel paint, and the color penetration is controlled by a thinner

2. Detail enhancement

The instrument panel adopts transfer printing technology to ensure that the scale markings are clear and distinguishable

Fluorescent orange accents are placed at the pipeline connections to highlight high-pressure hazard warning signs

Acrylic varnish is used for ground marking, which presents a reflective effect at night

3. Creating a scene atmosphere

The refueling area uses gradient blue LED to simulate the visual effect of low-temperature hydrogen mist

Micro circuit boards are implanted in the control room window to dynamically display operating parameters

Surrounding greenery is encapsulated with UV cured resin and embedded with miniature landscape lights
