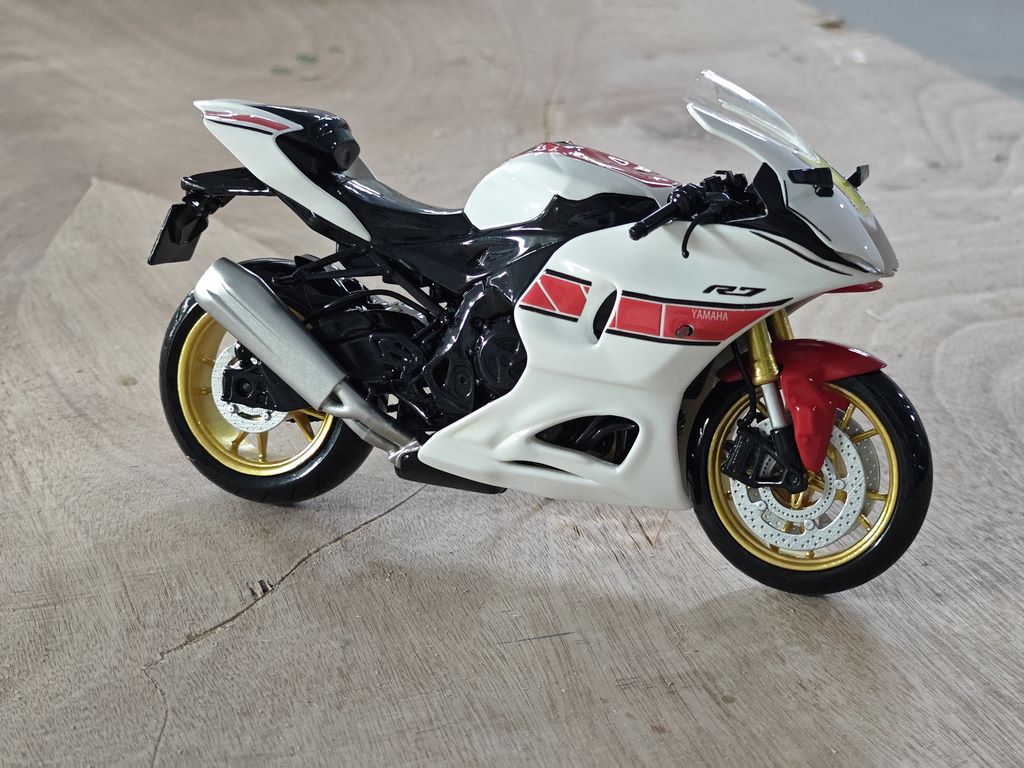

Precision Motorcycle Model Manufacturing Process Manual
I. Project Planning Stage
Prototype Collection
Use multi-angle industrial scanning to obtain real vehicle data
Focus on marking key features such as engine texture and exhaust pipe weld points
Break down the entire vehicle into 23 functional modules
Material Plan
Main frame: Ivory white resin simulating aluminum alloy texture
Drivetrain: Graphite gray resin to replicate cast iron characteristics
Transparent components: Crystal UV resin for headlight covers
II. Precision Manufacturing Process
Multi-material layered printing
Frame uses solid filling to ensure strength
Wheel hubs employ hollowed-out工艺 to reproduce spoke details
Tire treads printed using a composite of soft and hard resins
Industrial-grade surface treatment
Sandblasting to create metal casting texture
Hand-carved bolt anti-slip teeth
Electrolytic etching to create brand emblem
Dynamic Structure Implementation
Magnetic connection for rotating front wheel
Spring suspension rear wheel system
Openable fuel tank cover design
III. Professional Painting Solution
Base Color Treatment
Chrome plating effect using mirror-finish electroplating
Matte primer used on sandblasted areas
Aged treatment Engine oil stain traces
Color separation process
Water decals for body graphics replication
Masking spray for two-tone boundary lines
Fluorescent paint to highlight the braking system
Final protection
Amino bake paint protective layer
Localized clear coat to highlight metal parts
Matte finish for rubber components
