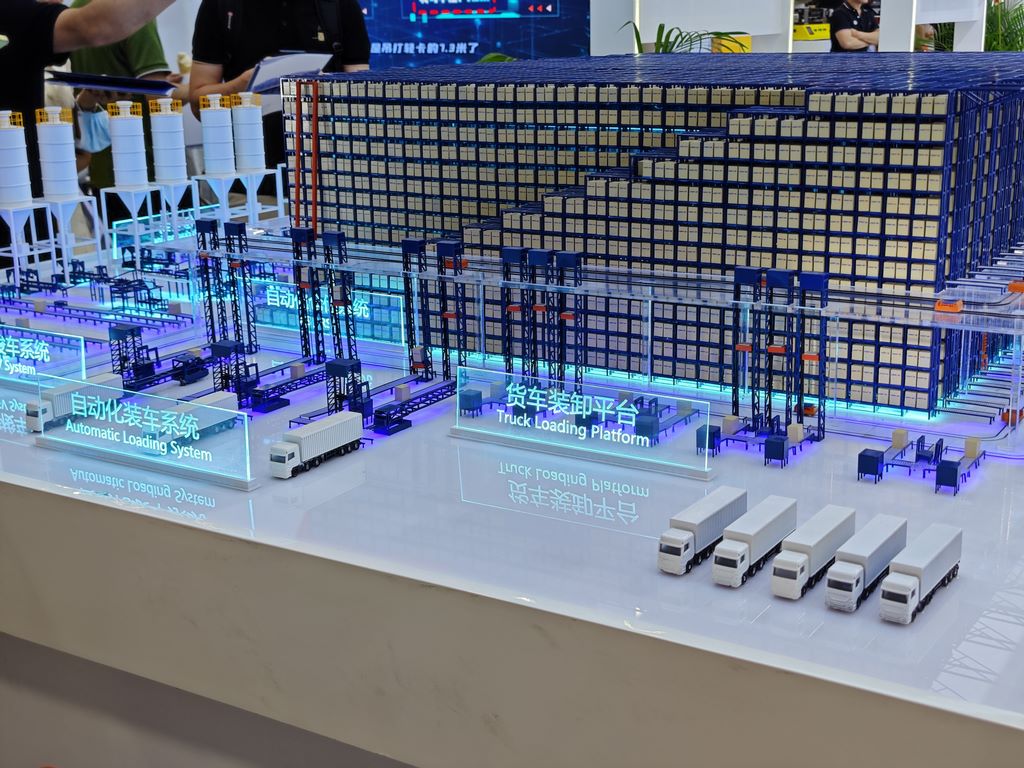

Smart Warehouse Logistics Exhibition Model – Production Case Study
I. Structural Fabrication
Warehouse Complex
Laser-cut ABS panels form the main framework, with etched brick wall textures for realism
Steel canopy structures use galvanized wire skeletons covered with translucent polycarbonate sheets
Loading dock bumpers are silicone-cast to replicate rubber elasticity
Logistics Flow System
Main pathways are layered with frosted acrylic sheets, chamfered to simulate curb edges
Loading zones feature epoxy floor coating with realistic wear patterns
Forklift lane markings use retroreflective film for nighttime visibility
II. Core Equipment Production
Automation Systems
CNC-machined aluminum rails for stacker cranes, with magnetic sliding mechanisms
Miniature motor-driven silicone conveyor belts, printed with barcode patterns
3D-printed transparent resin chutes for parcel sorting demonstrations
Transport Vehicles
Electroplated metal parts on forklifts replicate hydraulic piston details
Container truck cabins feature openable doors with flocked interiors
AGVs include laser radar models for enhanced futuristic appeal
III. Scene Detailing
Color Management
Matte metallic paint on warehouse exteriors for industrial aesthetics
Logistics containers use Pantone-matched colors for product categorization
Airbrushed shadow gradients enhance depth perception
Dynamic Elements
Hydraulic loading platforms with functional elevation
Digital displays cycle simulated inventory data
Lighting systems support three operational modes
