Case Study of Industrial Sand Table Model: Miniature Landscape of Intelligent Manufacturing Park
Project Background
In the midst of the rapid evolution of intelligent manufacturing, a prominent high-tech enterprise has embarked on constructing a state-of-the-art intelligent manufacturing park, seamlessly integrating research and development, production, and logistics. To visually represent the park’s overall layout, process flow, and future operational scenarios during the initial project planning stages, the enterprise entrusted our company—a seasoned model factory specializing in industrial sand table model production—with the task of crafting a high-precision, highly interactive industrial sand table model.
Project Name

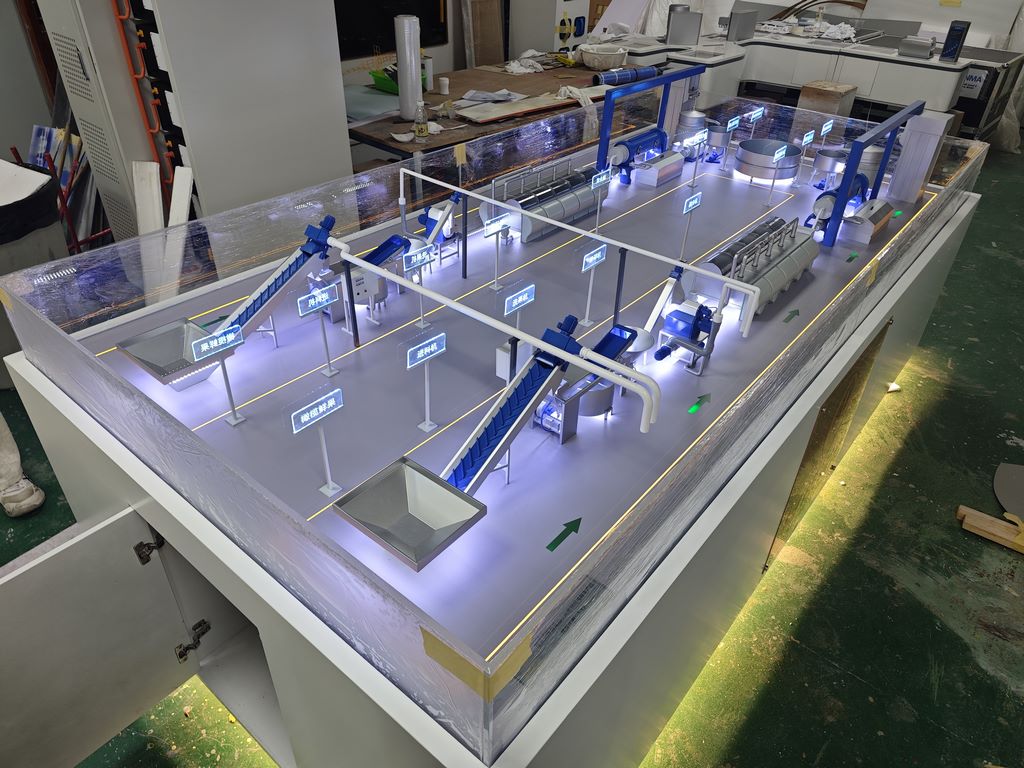

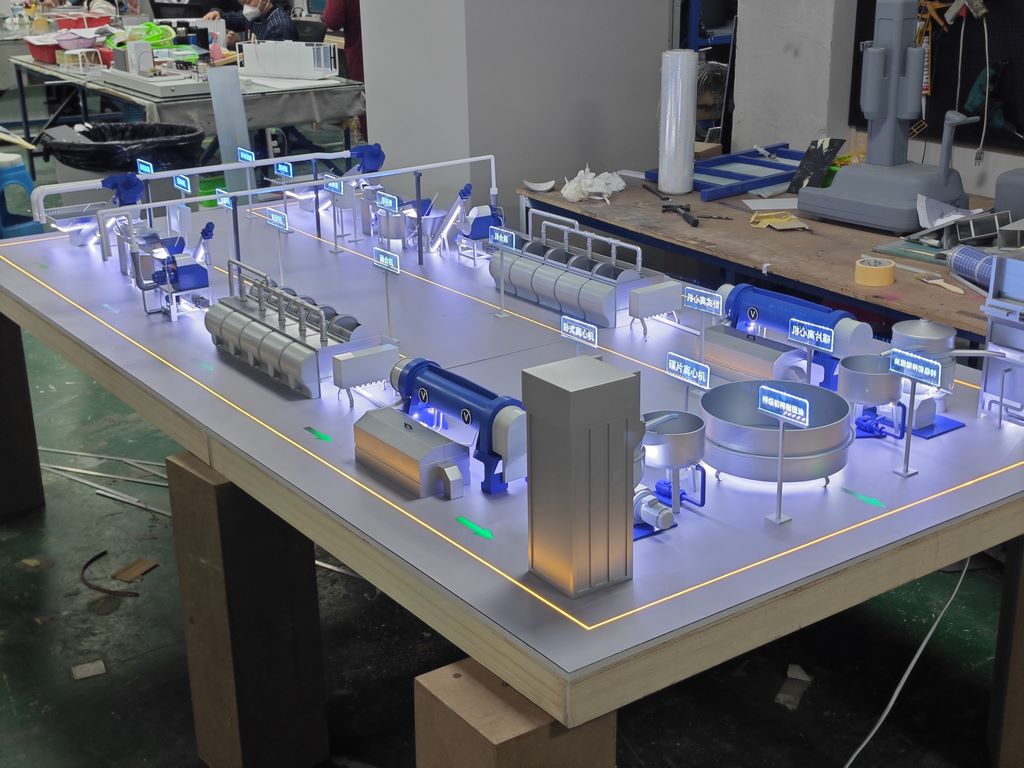

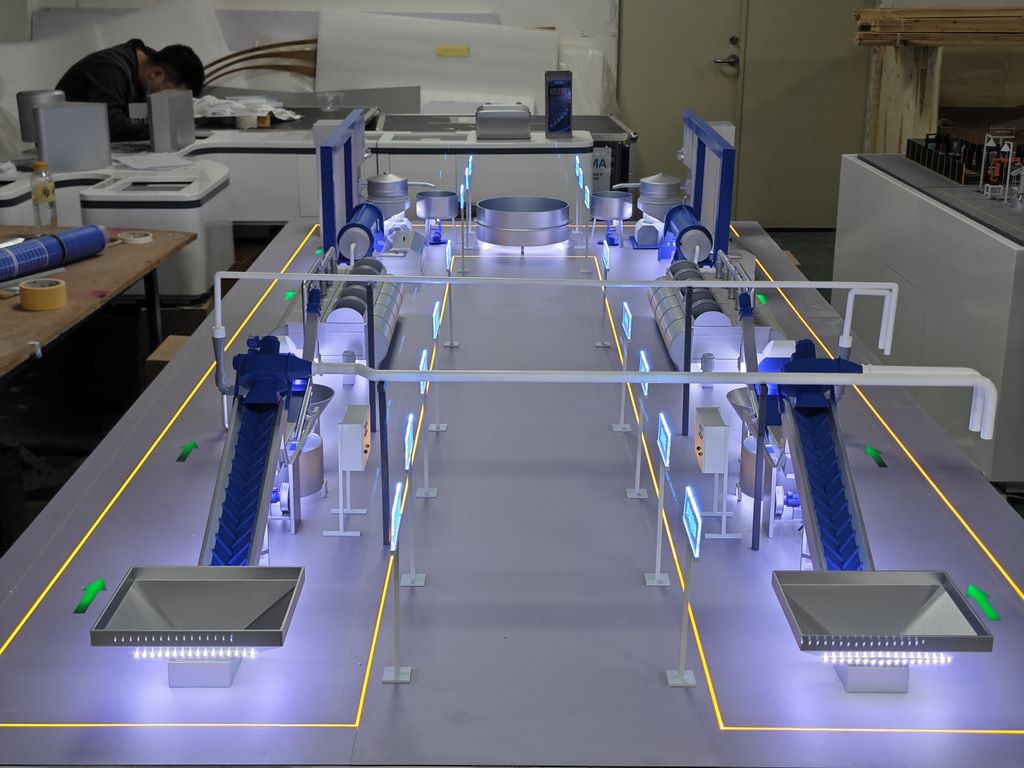

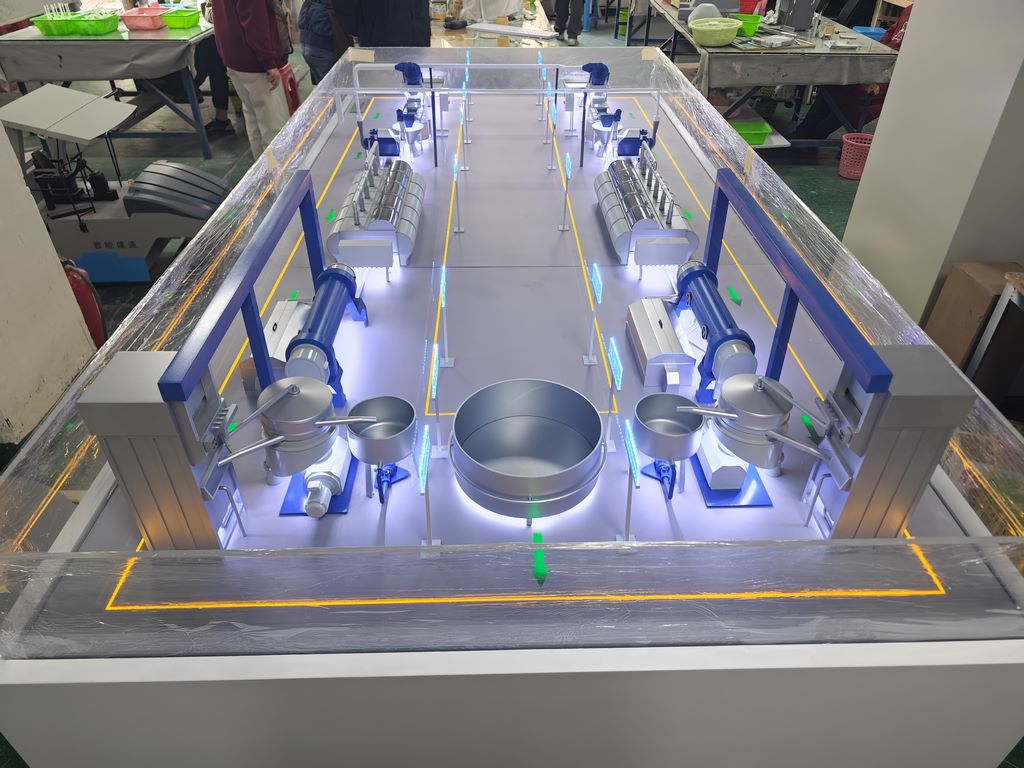

Miniature Landscape Model of Intelligent Manufacturing Park
Model Specifications
Dimensions: 2.5 meters x 3 meters
Scale: 1:100
Core Processes and Material Applications
Laser Cutting Technology: Utilizing high-precision laser cutting machines, we finely cut acrylic sheets and ABS sheets, ensuring accuracy in dimensions and smooth, flat edges. This technology excels in manufacturing intricate model structures, such as robot arms and precision instruments on production lines.
3D Printing Technology: For complex model components, including 3D sculptures and intricate park pipeline systems, we employ 3D printing technology for customized production. This boosts production efficiency while guaranteeing model detail accuracy and structural stability.
LED Lighting Effect: Incorporating micro LED light strips and programmable RGB light beads, we simulate the park’s lighting system, production line operation status, and logistics vehicle dynamic trajectories. Remote control or programming software allows for customizable light color and brightness, displaying the park’s varying landscapes across different time periods or working modes.
Environmentally Friendly PVC and ABS Materials: The main structure comprises eco-friendly PVC sheet and ABS plastic, ensuring weather and corrosion resistance while maintaining vibrant colors during long-term display, minimizing environmental impact.
Fine Manual Carving and Painting: We apply manual carving and multi-layer painting techniques to architectural appearances and equipment details, mimicking real-life textures and finishes, such as brick and stone gaps, and metal光泽, rendering the model lifelike and vivid.
Intelligent Control System: Integrated with an intelligent control board, it manages lighting and mechanical movements through a touchscreen or mobile app, offering dynamic model demonstrations and immersive visitor experiences.
Project Highlights
High Reproducibility: Leveraging advanced processes and materials, the model faithfully replicates the intelligent manufacturing park’s layout, encompassing key zones like the R&D center, automated production line, intelligent warehousing area, and environmental treatment facilities.
Interactive Experience: Combining LED lighting effects and an intelligent control system, visitors intuitively grasp the park’s daily operations and even comprehend production processes through simulated operations, significantly enhancing the model’s viewing and educational value.
Environmental Protection Concept: Throughout model production, we uphold green environmental principles, using recyclable or low-pollution materials, reflecting our commitment to sustainability.
Achievement Display
Upon completion, the miniature landscape model of the intelligent manufacturing park became a star attraction in the enterprise exhibition hall, drawing numerous visitors. It effectively promoted the project and facilitated internal and external communication. This case has also been featured in our company’s official website’s high-quality case display area, showcasing our industrial sand table model production prowess and continually attracting potential clients and partners.
This case underscores our model factory’s professional capabilities and innovative technology in industrial sand table model production, highlighting the model’s process features, material selection, and practical application value—perfect for website promotion.
