Henghui Model | Integrated Converter and Boosting Machine Model - Smart Crystal of Power Technology and Precision Manufacturing
In today's rapidly developing new energy technology and smart grid, power equipment models have become a vital bridge between technical principles and practical applications.
As an innovative leader in industrial modeling in China, Henghui Model leverages 20 years of industry expertise to introduce the converter boost integrated machine model. With millimeter-level accuracy, it replicates the core structure of equipment, transforming complex power systems into intuitive and tangible educational tools and industrial artworks. This article delves into the core value of this product through the lenses of technology R&D, manufacturing precision, material innovation, and versatile application scenarios.
1. Henghui Model: Pioneer in Electric Power Technology Models
Established in 2005 with a mission to make complex technology accessible.
Focus on high-end industrial models, backed by a provincial-level engineering technology research center.
Equipped with a 1000 sqm dust-free assembly workshop and advanced CNC machining equipment.
Certified with ISO 9001 and ISO 14001.
Strategic partnerships with State Grid, Southern Power Grid, and Huawei Digital Energy.
Pioneering the integration of digital twin technology with physical models.
Product range covers inverters, transformers, and energy storage systems, widely used in research, new energy enterprises, and education.

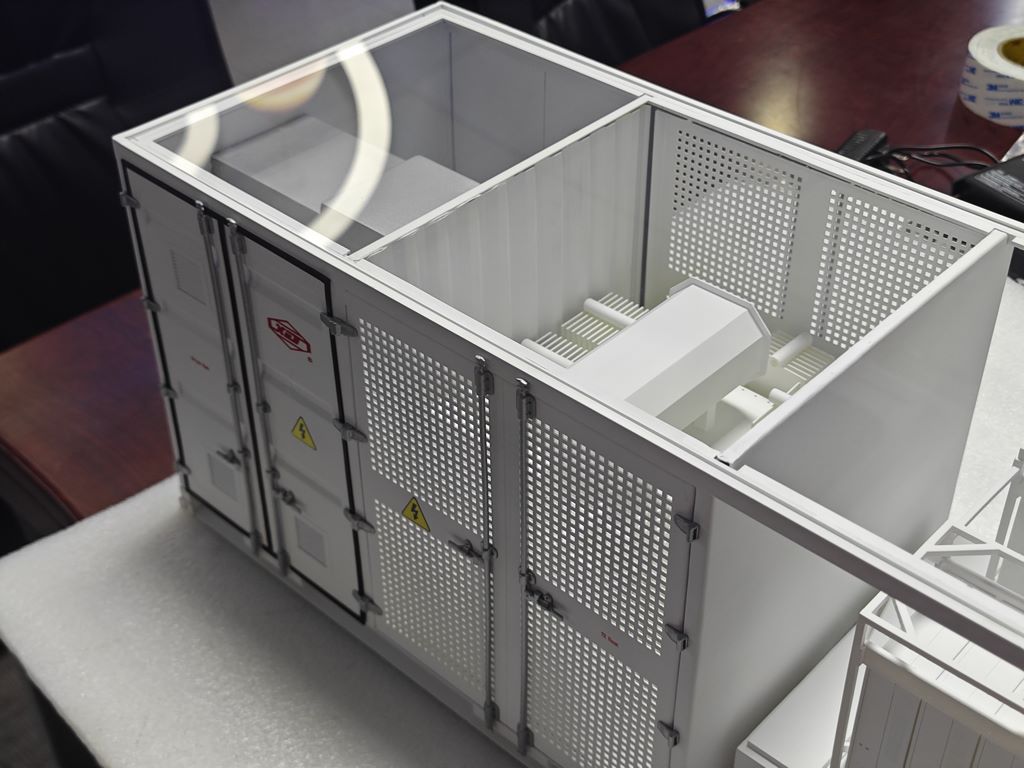

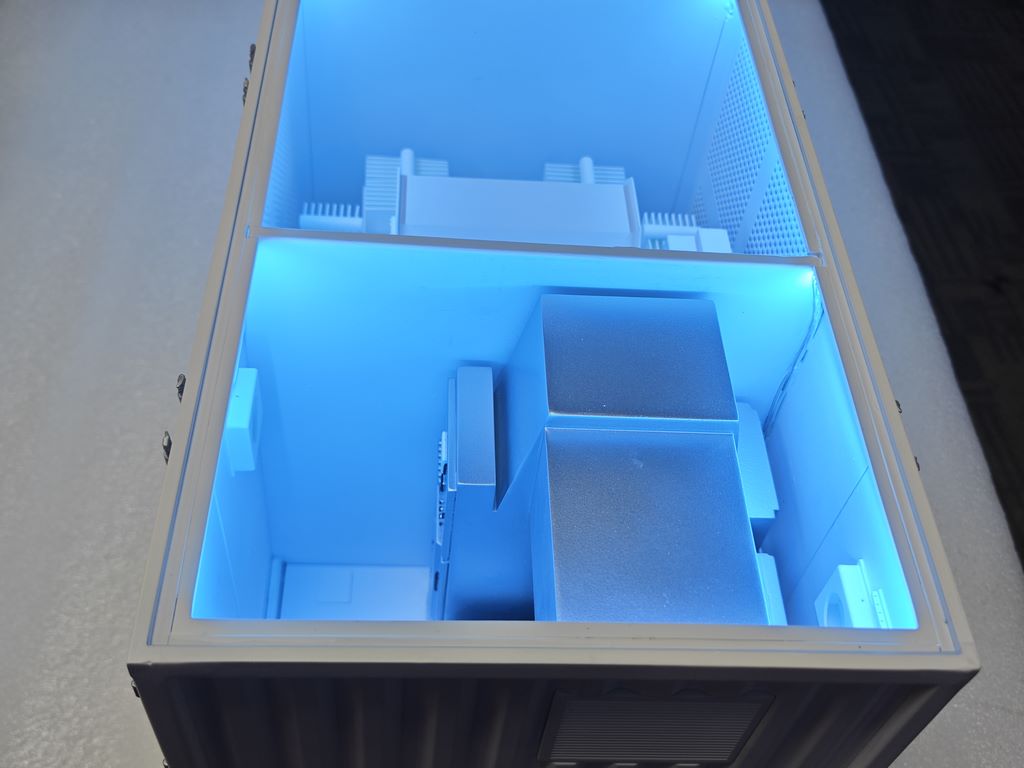

2. Converter Boost Integrated Machine Model: A Fusion of Technology and Art
Core Technical Parameters:
Scale: 1:10/1:20 (customizable)
Voltage Simulation: DC 0-1500V / AC 0-1000V
Efficiency Accuracy: ±0.5% (dynamic LED display)
Functional Modules: Rectification, inverter, boost, and heat dissipation systems
Precision Manufacturing Process:
Digital Twin Design:
ANSYS simulation for electromagnetic field distribution.
3D scanning with reverse engineering for over 3000 key data points.
Material Innovation:
Main Structure: Aviation-grade aluminum alloy frame (+30% strength) + carbon fiber composite shell (-40% weight).
Core Components:
Winding: Enameled copper wire (0.1mm diameter, ±0.02mm accuracy).
Heat Sink: Nano thermal conductive silicone + micro heat pipe array.
Electronic Components: Miniature IGBT module.
Process Details:
Precision casting for high voltage insulators (Ra0.8 μm surface finish).
Anodizing for natural color restoration and clear silk screen circuit markings.
Dynamic demonstrations including real-time voltage/current curves, fan rotation simulation, and fault simulation.
3. Multi-Scenario Application: From Education to Business
Education & Teaching:
Institutional Cooperation: Joint "Power Electronics Model Laboratory" with Tsinghua University’s School of Electrical Engineering.
Teaching Functions: Disassembly design, AR-triggered 3D animations, and experimental manuals with 12 fault case analyses.
Industrial Exhibition:
Enterprise Exhibition Hall: Linking models with actual vehicle charging systems for dynamic energy flow demonstrations.
Exhibition Highlights: Modular design for microgrid system sand tables.
Research Assistance:
Parameter Simulation: Software-controlled input/output for performance simulation under various conditions.
Heat Dissipation Test: Infrared thermal imaging for real-time component temperature distribution.
Commercial Gifts:
Customized Service: Engraving enterprise logos, equipment numbers, and technical parameters.
Case Reference: State Grid’s international cooperation gifts.
Film & Television Props:
Movie-Level Restoration: 1:5 controllable models for sci-fi films with lighting effects and mechanical movements.
Special Requirements: Customizable "futuristic" designs.
4. Technological Innovation and Industry Impact
Intelligent Interaction Upgrade:
IoT module for remote control and data upload.
Compatible with MATLAB/Simulink for joint simulation experiments.
Green Manufacturing Practice:
3D printed recycled materials (60% recycled plastics) reducing carbon emissions by 25%.
Award-winning, 100% recyclable packaging design.
Industry Standard Setting:
Leading the development of the "Technical Specification for Teaching Models of Power Equipment" group standard.
Participating in IEC standard discussions.
5. Future Outlook: Intelligent Transformation of the Model Industry
Henghui Model, starting with the converter boost integrated machine, outlines three strategic directions:
AI-Driven Model: Deep learning-based fault diagnosis system.
Metaverse Scenario: Virtual power plant digital twin platform.
New Energy Ecology: Expanding model product lines in hydrogen energy and photovoltaics.
Conclusion
The Henghui converter boost integrated machine model is not just an industrial artwork; it’s the key to unlocking power technology. From labs to exhibition halls, from textbooks to the digital realm, it embodies the essence of technology in innovative forms. Choosing Henghui means choosing a future intertwined with Chinese intelligent manufacturing.
