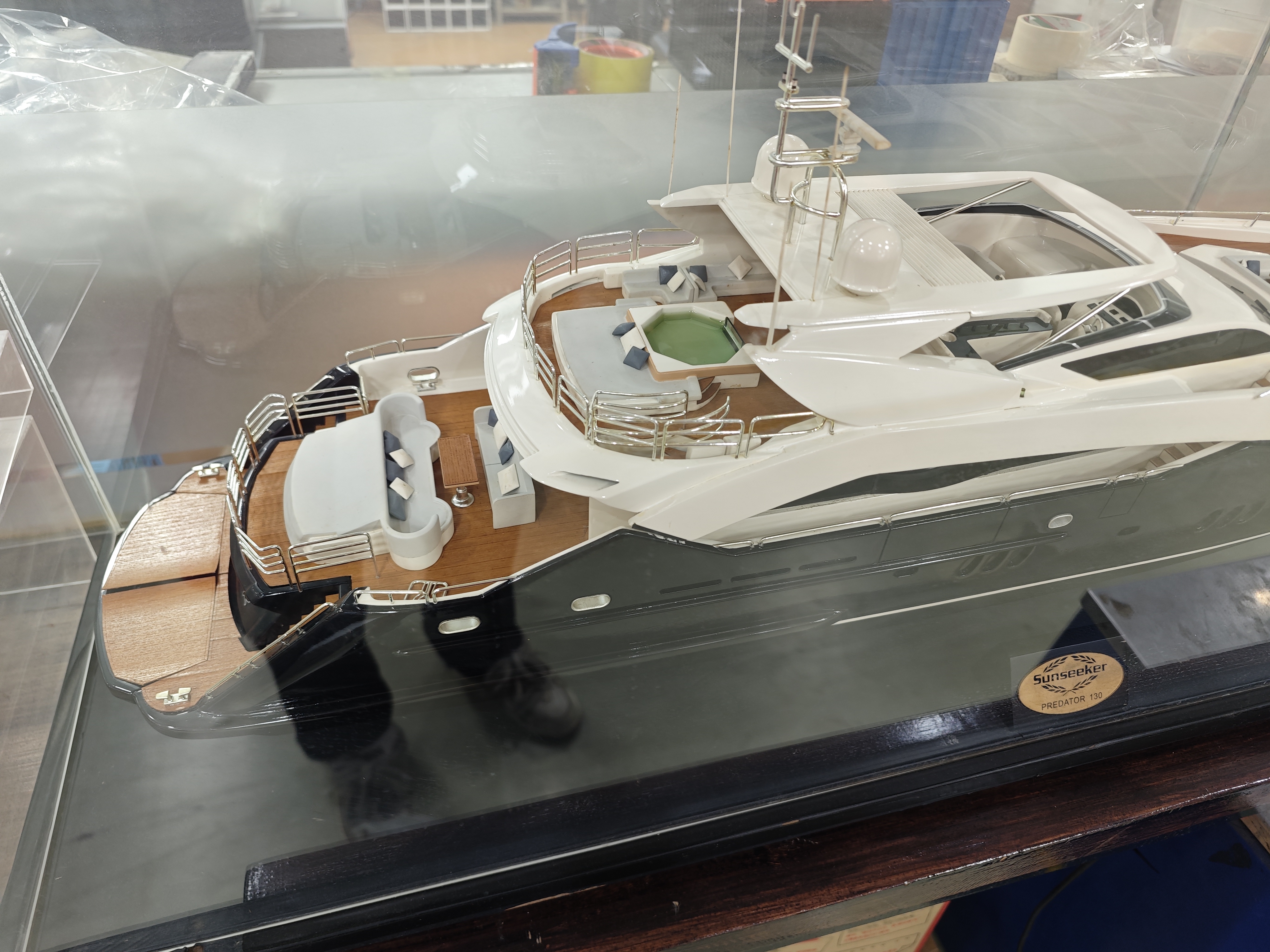

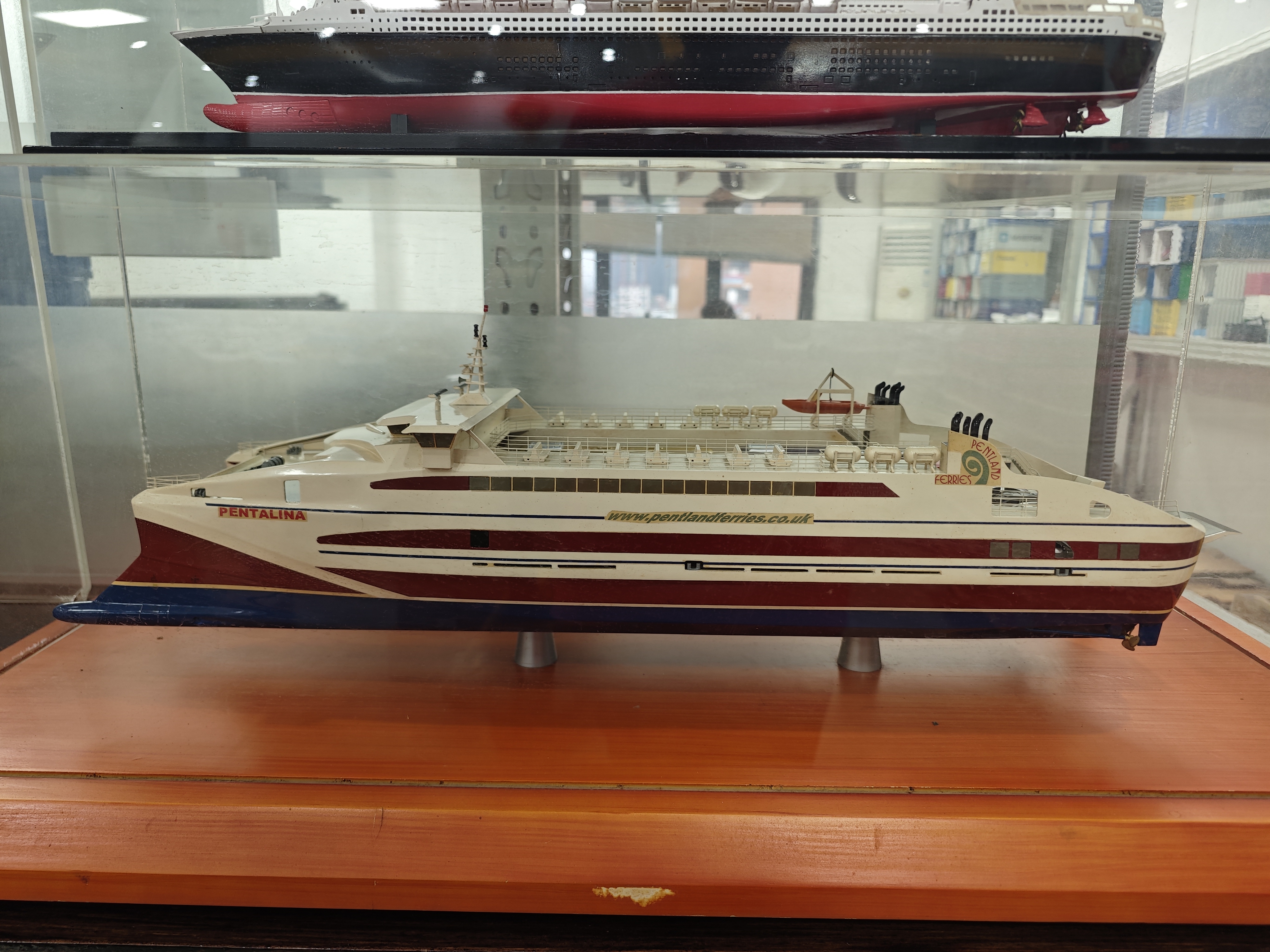

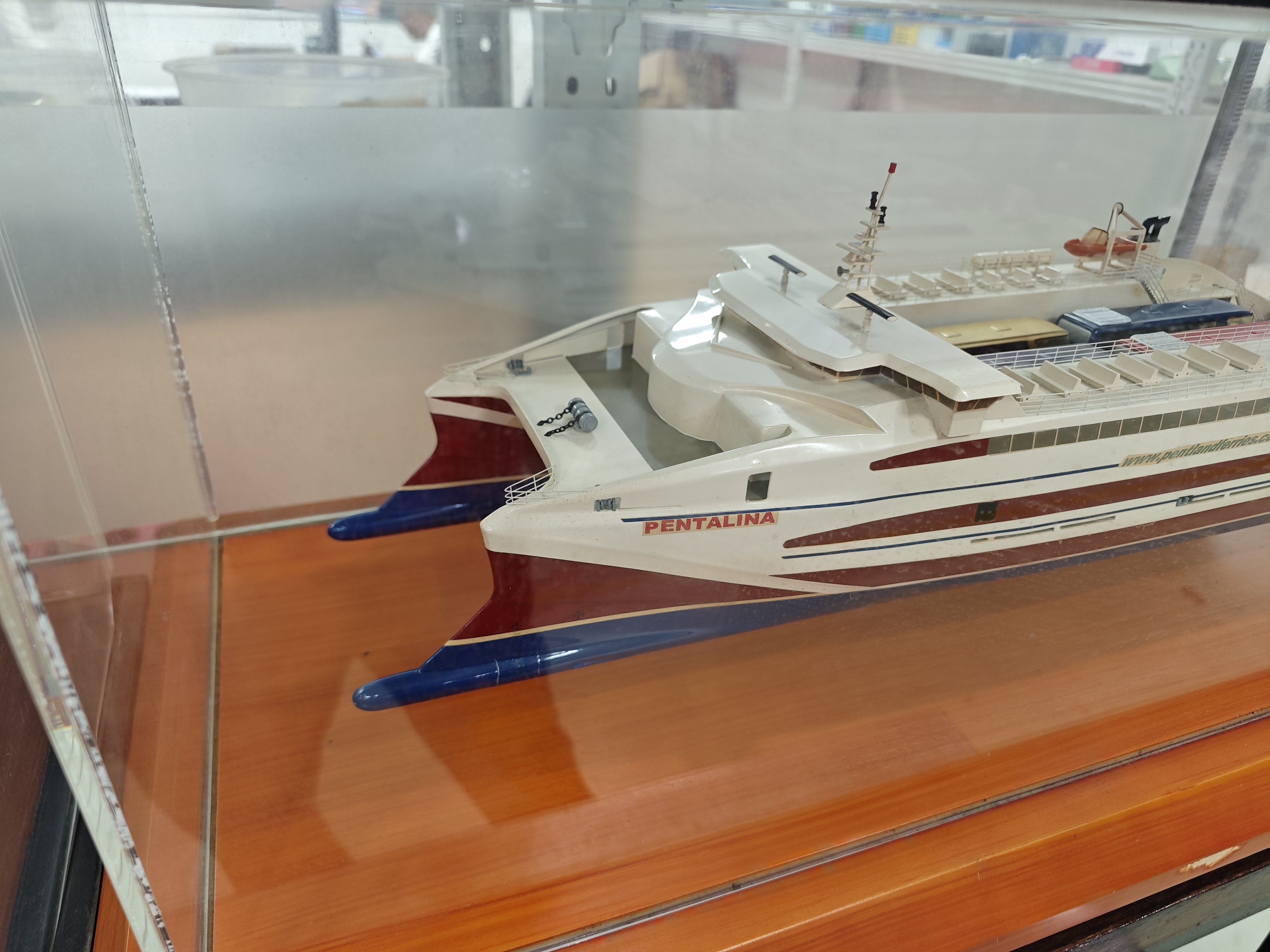

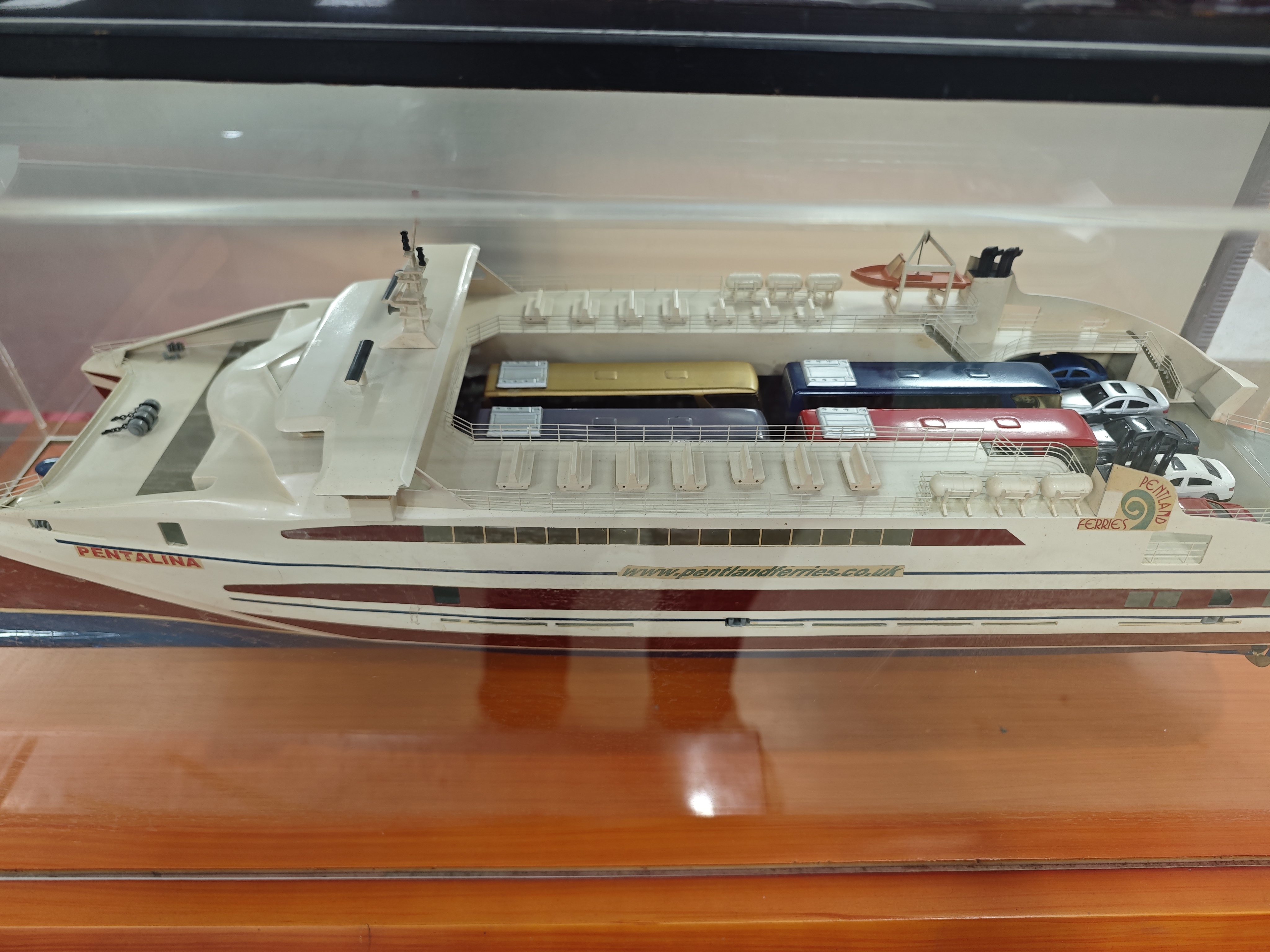

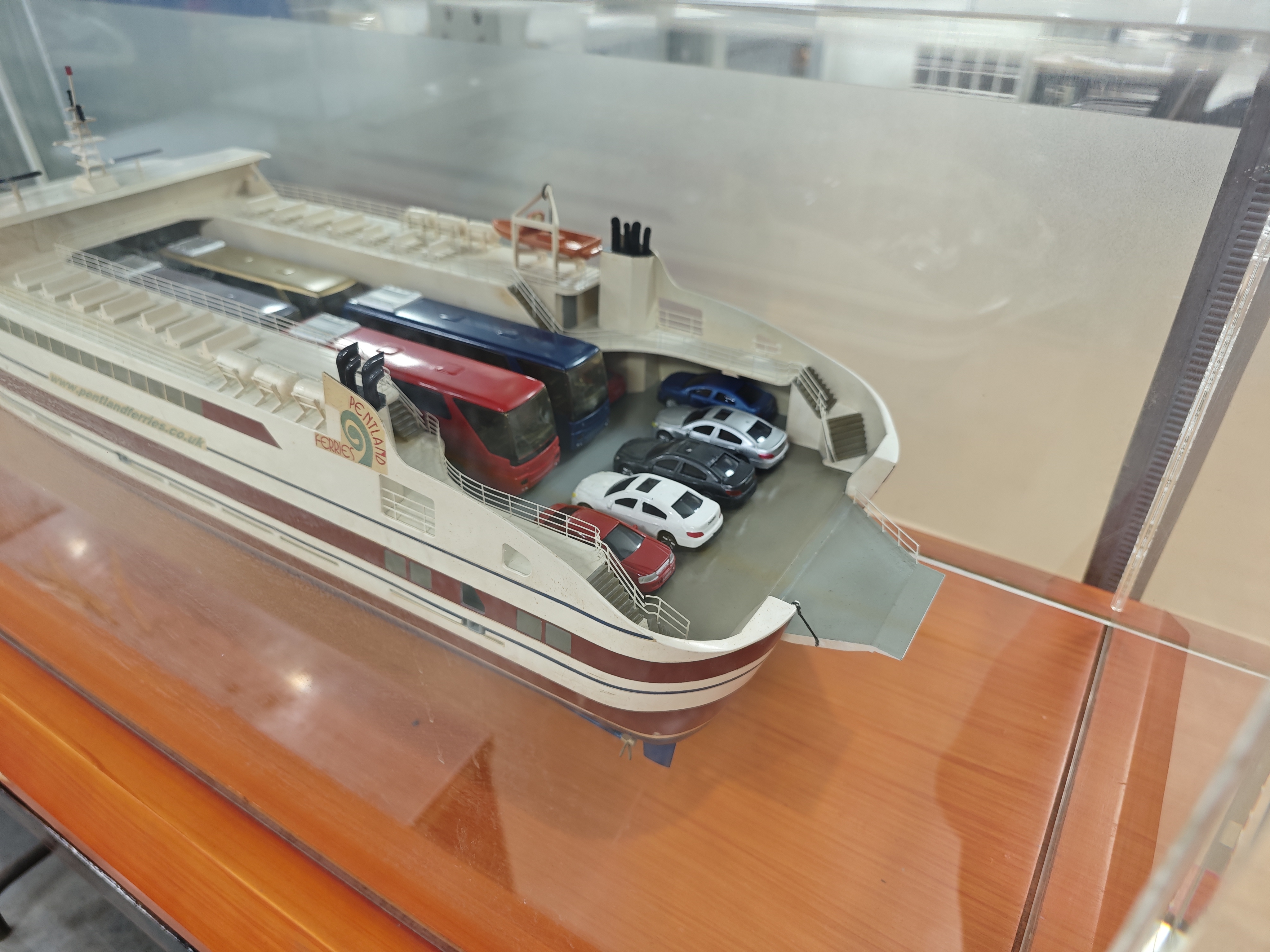

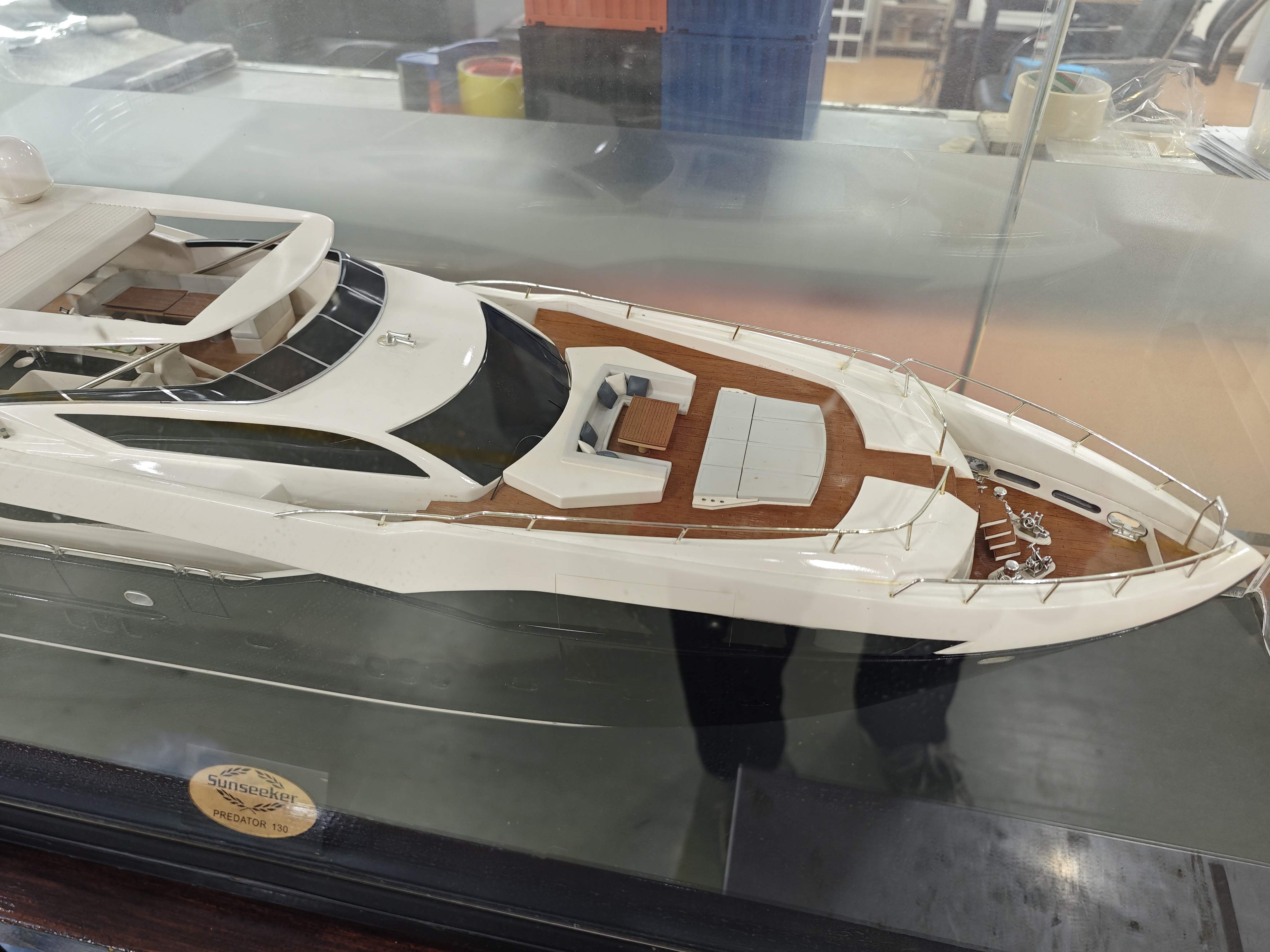

High-Precision Prototyping Customized ship models

Henghui Model | Ship Model - Artistic Crystal of Marine Technology and Precision Manufacturing

Against the backdrop of the global shipping industry's transition towards intelligence and greenness, ship models have emerged as a vital bridge between reality and imagination. They serve as essential tools for maritime education, port planning, and film & television creation. As a pioneering brand in the domestic industrial modeling sector, Henghui Model leverages 20 years of technological expertise to introduce a range of ship model products that replicate the core structure and dynamic systems of modern ships with millimeter-level precision. This article delves into the core value of these products through the lenses of technology R&D, craftsmanship details, material innovation, and diverse application scenarios.

1. Henghui Model: A Technological Benchmark in Ship Modeling

Established in 2005, Henghui Model focuses on the research and production of high-end industrial models. As a national high-tech enterprise and a member of the China Shipbuilding Industry Association, it boasts a provincial-level ship engineering laboratory, a 2000 sqm digital production workshop, and an advanced five-axis linkage machining center. With ISO 9001 and ISO 14001 certifications, and through deep collaboration with industry giants like China Shipbuilding Industry Corporation, COSCO Shipping, and China Merchants Group, Henghui Model has pioneered the integration of digital twin technology with physical models. Its product range spans container ships, oil tankers, LNG ships, and research vessels, serving over 300 global customers.

2. Ship Model: A Fusion of Technology and Art

• Core Technical Parameters

  • Scale: 1:50/1:100 (customizable)

  • Functional Modules:

    • Power System: Simulates main engine start and propeller rotation (0-200rpm)

    • Navigation System: Radar scanning, GPS positioning demonstration

    • Cabin Structure: Openable cargo hold, cab, engine room

    • Intelligent Interaction: Touchscreen displays ship parameters (load, speed, fuel consumption)

    •







• Precision Manufacturing Process

  • Digital Twin Design: Utilizes ANSYS for fluid dynamics simulation, optimizing hull shape and stability; 3D scanning yields over 5000 data points with ±0.05mm accuracy.

  • Material Innovation:

    • Ship Structure: Aviation-grade aluminum alloy frame + carbon fiber composite skin (35% weight reduction)

    • Core Components:

      • Propeller: Zinc alloy precision casting (±0.1mm blade thickness accuracy)

      • Anchor Chain: Stainless steel wire rope (simulates anchoring)

      • Fiberglass: Ultra-white glass (92% light transmittance)

      •







  • Craftsmanship Details:

    • Surface Forming: Five-axis machining for high-precision hull replication

    • Surface Treatment: Fluorocarbon spraying, 2000+ hour salt spray resistance

    • Dynamic Demonstration:

      • Cabin LED lighting (day/night mode)

      • Wave simulation device (adjustable wave height/frequency)

      • Fault simulation system










3. Multi-Scenario Application: From Education to Business

• Navigation Education: A 3D Classroom for Ship Knowledge

  • Collaboration with Dalian Maritime University: Establishes "Ship Engineering Model Laboratory," training 5000+ teachers/students annually.

  • Teaching Functions:

    • Dismantling design showcases power system and distribution network

    • VR technology triggers maneuvering principle animations

    • Courses include "Collision Avoidance Rules" and "Cargo Binding" practical training.

    •







• Port Planning: Visual Validation of Logistics Solutions

  • Simulation Testing: Optimizes berth utilization by 15% through model simulations.

  • Equipment Matching: Verifies shore bridge-ship compatibility, reducing debugging cycles by 30%.




• Industrial Exhibitions: High-End Carriers of Brand Image

  • Enterprise Exhibition Hall: Links models with real ship data screens.

  • Exhibition Highlight: Modular design combines with container terminal models for a full-process demonstration.




• Film & Television Props: Professional Detail Visuals

  • Movie-Level Restoration: Provides 1:20 treasure ship model for "Zheng He's Voyage to the West" documentary.

  • Special Customization: Installs fireworks special effects for "burning ship" scenes.




• Military Simulation: Practical Training Tool for National Defense Education

•

  • Tactical Deduction: Develops "ship formation model" for collaborative military training.

  • Parameter Settings: Adjustable speed and heading, simulating maneuvering under various sea conditions.




4. Technological Innovation and Industry Impact

• Intelligent Interaction Upgrade:

  • Equipped with UWB positioning module for real-time tracking.

  • Integrates with Ship Automation System (IAS) data for virtual cockpit operations.




• Green Manufacturing Practice:

  • Utilizes 3D printed recycled materials (70% recycling rate for discarded ship plastic parts).

  • Packaging design wins "China Green Packaging Gold Award," recyclable over 100 times.

  •




• Industry Standard Setting:

  • Leads development of "Technical Specifications for Ship Teaching Models" group standard.

  • Participates in International Maritime Organization (IMO) Ship Safety Standards Seminar.




5. Future Prospects: Digital Transformation of the Model Industry

Henghui Model, starting with ship models, is strategizing in three directions:

• AI-Driven Model: Developing a machine learning-based ship energy efficiency prediction system for ±1% demonstration accuracy.

• Metaverse Scenario: Building a virtual port digital twin platform for real-time interaction between physical models and virtual space.

• New Energy Expansion: Developing hydrogen fuel cell ship models, covering the "hydrogen production, storage, and application" chain.

•

Conclusion

The Henghui ship model is not just an industrial artwork; it's a miniature epic of marine technology. From sailing classes to harbor sandboxes, from movie sets to military bases, it innovatively interprets humanity's ocean exploration and conquest. Choosing Henghui is choosing a model that grows with China's maritime power strategy.
