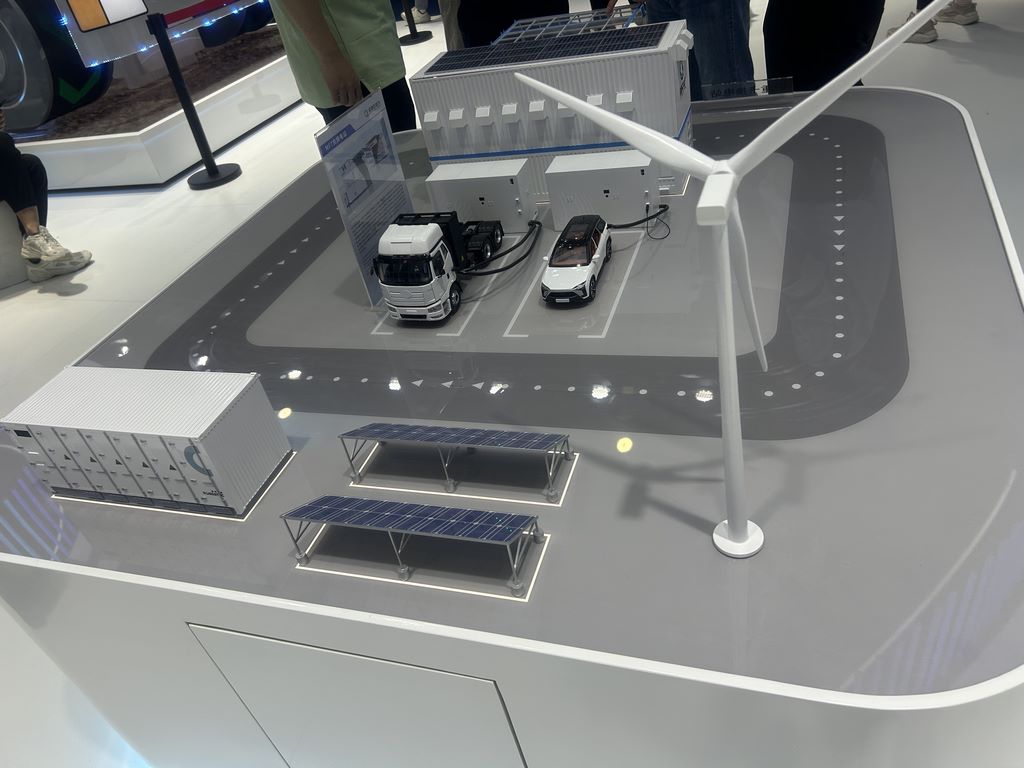

Model making scheme for intelligent charging station
1、 Project positioning and feature analysis
This plan is based on the mainstream intelligent charging stations of 2025, with an overall height control within 20cm, and focuses on three core features:
Future oriented Industrial Design: Organic Integration of Curved Metal Shell and LED Interactive Interface
Visualization of Energy Systems: Transparent Energy Storage Modules and Photovoltaic Roofs
Intelligent interactive experience: a lighting system that can simulate charging status
2、 Staged production process
Structure fabrication stage
Main frame forming
Charging pile shell: Made of 0.5mm aviation aluminum plate CNC precision carved, with electrolytic polishing treatment at the curved turning points
Photovoltaic ceiling: laser cut 2mm organic glass, surface etched with solar panel patterns
Cable assembly: 0.3mm silicone tubing wrapped in tin plated copper wire, retaining a natural sagging sensation
Precision component machining
Charging gun interface: Zinc alloy die-casting molding, with embedded magnetic positioning structure in the socket
Interactive screen: 0.8mm acrylic UV printing interface, integrated micro LED matrix on the back
Surface treatment stage
Basic texture shaping
Metal parts: First spray amino baking paint as a base, then use electrostatic flocking to create a frosted texture
Rubber components: After flipping the silicone mold, the surface is sprayed with rubber particles to enhance the texture
Special effect processing
Photovoltaic panel: alternately sprayed with transparent blue and pearl clear varnish, simulating the reflective properties of single crystal silicon
Ground marking: Water transfer printing technology produces a no stop grid line with a worn texture
Dynamic System Integration
lighting control system
Using SMD2835 patch LED, three states can be switched through a micro light control module:
Standby mode: Breathing blue light
Charging status: pulsed green light
Fault status: flashing red light
Debugging of movable mechanism
Charging gun storage: Memory alloy spring achieves automatic rewinding
Protective cover plate: Magnetic opening and closing structure, with a limit of 75 ° opening and closing angle
