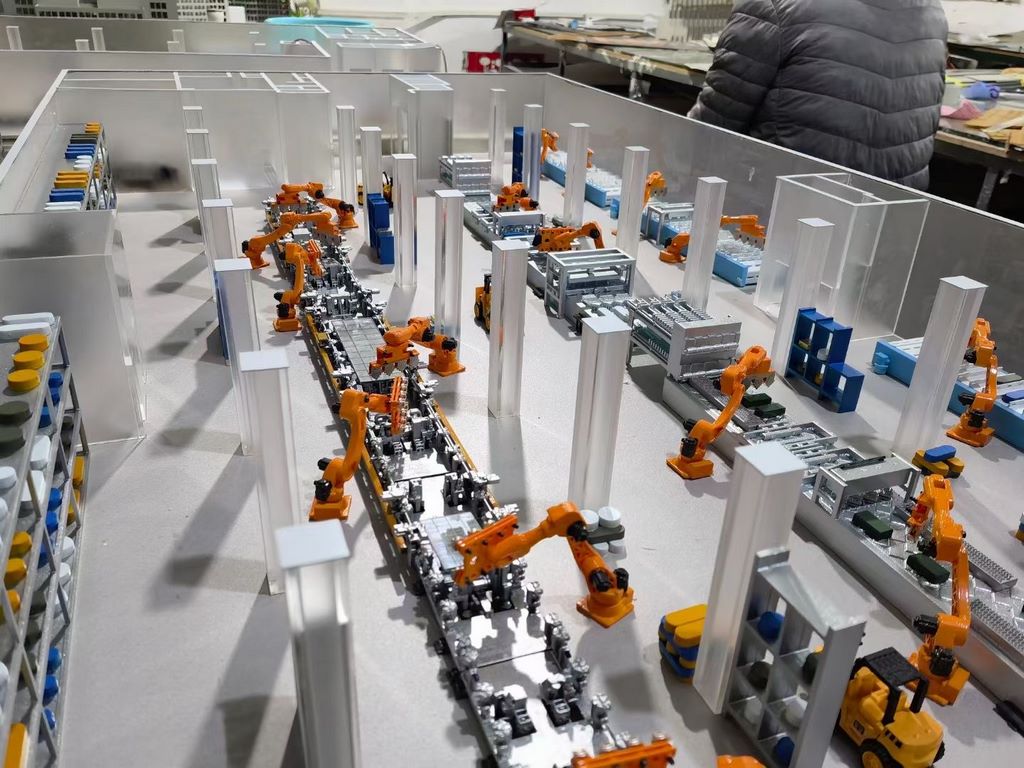

Intelligent manufacturing enterprises customize a 1:50 scale sand table for industrial expos, requiring the presentation of four core modules including raw material warehouses, robotic arm assembly lines, AGV logistics systems, and digital twin monitoring centers, with an overall model restoration rate of over 90%.
The entire process of production technology
1. Skeleton construction: three-dimensional transformation of industrial logic
Base forming: use high-density foam board to cut out stepped terrain, simulate the factory foundation fall, and wrap the edge with ABS board to enhance the deformation resistance
Frame welding: Use 1mm copper pipes to construct the main steel structure of the building, achieve seamless connection through micro argon arc welding, and restore the characteristics of the factory truss
2. Equipment Reproduction: From Industrial Parts to Artistic Components
CNC precision carving: Entrust a precision machining factory to carve the joint structure of the robotic arm with acrylic sheet, preserving the sharp edges and turns of the real equipment
Casting process: Standardized production equipment for silicone flipping molds (such as injection molding machines), manually removing the mold line after resin casting
3. Dynamic System: Vitality in Solidification Scene
Magnetic levitation track: embedded with 0.3mm magnetic powder coating in the AGV path, combined with micro magnetic wheels to achieve noise free sliding
Fiber optic scenery: Flexible optical fibers are arranged along the ceiling to simulate the flowing light effect of overhead crane LED light strips
Innovative Application of Materials
Metallic texture treatment: aluminum powder is mixed into matte paint to spray the robotic arm, and enamel paint is applied with a pen to strengthen the rust details
Transparent medium application: laser engraving gradient brown acrylic board, reproducing the changes in sunlight levels of glass curtain walls
Ecological composite materials: 3D printing of waste PLA plastic to reshape pipeline systems, surface wrapped with copper foil to enhance industrial feel
Post art processing
Trio of Coloring Techniques
Base color treatment: Whole piece sprayed with ash and soil to enhance the adhesion of the subsequent paint surface
Industrial aging: Use sponge dipping method to create paint peeling effect on the edge of equipment, and use stain solution to strengthen rivet indentations
Environmental integration: Spray paint tire friction marks in logistics channels, simulate factory green belts with electrostatic grass planting powder
