Integration of Precision and Strength: Case Study of Model Making for Giant Heavy Industry CXK52160 Heavy duty CNC Longmen Milling Machine
In the field of industrial model customization, every piece of work is a comprehensive test of precision, craftsmanship, and deep understanding of customer needs. We are honored to have created a display model of the flagship product CXK52160 heavy-duty CNC gantry milling machine for "Giant Heavy Industries" this time. This project not only perfectly replicates the grandeur of the equipment, but also showcases exquisite craftsmanship in every detail, becoming the core highlight of the enterprise exhibition hall.
1、 Project Background and Core Challenges
Giant Heavy Industries hopes to create a high-precision and high fidelity machine tool model for permanent display at large-scale exhibitions and corporate headquarters both domestically and internationally. The core requirement is that the model must strictly follow the physical design, highlighting its stability and precision as a "major national treasure", while ensuring that the brand logo is clear and eye-catching, and the visual effect is highly impactful.
The main challenges we face are:
Structural complexity: The gantry frame structure of a physical machine tool is large and complex, and how to ensure its structural stability and visual power on a small-scale model is the key.
Detail restoration: The precise radial engraved lines, various identification signs, and guardrails on the workbench need to be clearly presented to reflect the precision characteristics of the product.
Color and brand presentation: The customer's enterprise standard colors (white, red, yellow) must be accurately applied, and the huge "Giant Heavy Industries" lettering and logo need to become the visual focus.
2、 Our solution and production process
1. Precision design and data conversion:
Our engineering team first conducts in-depth analysis and conversion of the complete set of CAD drawings provided by the customer. Considering the display properties of the model, we have optimized the strength of some thin structures appropriately while maintaining the absolute accuracy of the overall proportion, ensuring that the model does not deform during long-term transportation and display.
2. Multi process integrated manufacturing:
Main structure: The large main components such as the gantry columns and beams of the model are machined with high-precision CNC, ensuring sharp contours and zero dimensional errors. The white body is coated with premium automotive paint, which has a thick texture and is wear-resistant and not prone to yellowing.

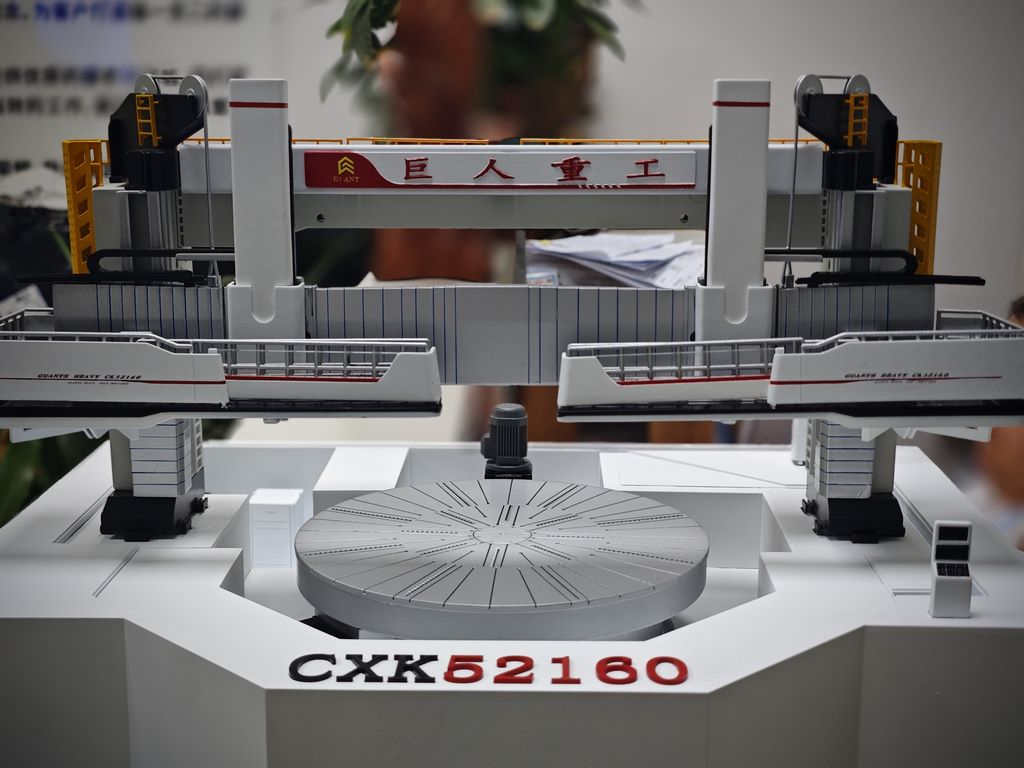

Core Workbench: The circular workbench is the "eye" of the model. We use ultra-fine 3D printing technology to create embryos, which are then manually carved into radial and circular lines by experienced technicians. Finally, through chrome plating and aging treatment, we simulate the texture of real metal and slight usage marks, greatly enhancing the realism.
Brand identity and details: The red stripes on the column, the words "Giant Heavy Industries" and "GIANT" are all printed using water-based transfer printing technology, with clear edges and saturated colors. Small components such as guardrails and operation boxes are precisely made through laser cutting and manually painted with bright warning yellow, instantly activating the visual hierarchy of the entire model.
3. Rigorous quality inspection and packaging:
After completing the final assembly, the model undergoes multiple rounds of size verification and visual inspection to ensure a 100% match with the actual photos. In view of the large size and outstanding structure of this model, we have customized an aviation case with high-density shock proof foam to ensure its safe arrival at any exhibition site in the world.
3、 Results and Value
The final completed CXK52160 model is not only an industrial exhibit, but also a work of art. It accurately captures the power and beauty of heavy-duty machine tools, with a pure white body paired with red and yellow warning colors, creating a strong visual tension under the lights. It successfully attracted the attention of professional visitors at the exhibition site and became a silent spokesperson for the strength and technical reliability of Giant Heavy Industries' brand.
Through this case, we have once again demonstrated our full process solution capability in the field of complex industrial model manufacturing - from technical understanding to artistic expression, from precision manufacturing to safe delivery. What we provide to our customers is not just one model, but a complete brand display solution.
