Deep Sea Submersible Display Model Production Case

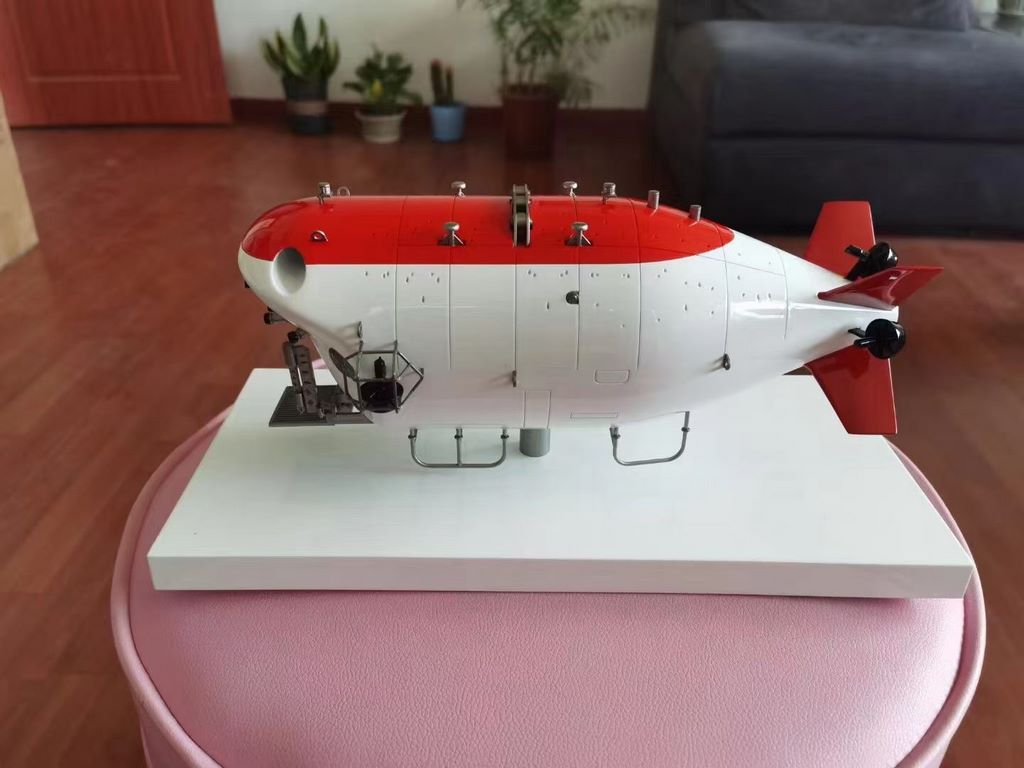

In the visual promotion and business communication of deep-sea exploration equipment industry, high-precision deep-sea submersible display model serves as a core carrier to present the design concept and clearly show the hull contour, external structure and auxiliary accessories of submersible vehicles. We customized this deep-sea submersible display model for deep sea research enterprise. With more than 90% structural restoration rate and delicate craftsmanship, the model fully replicates the streamlined hull shape, external observation window, mechanical brackets, tail fin and external equipment components. It helps customers display equipment design highlights in enterprise exhibition halls and marine industry exhibitions.

1. Demand Sorting and Preliminary Preparation

The customer requires static display. The model should accurately restore the outline of the submersible, external mechanical structures, tail stabilizer fins and various external fittings. It needs to adapt to exhibition transportation and long-term display in exhibition halls, balancing visual presentation and overall structural stability. Based on the design drawings of submersible, we divide the whole model into three core modules: main pressure hull section, external mechanical & tail assembly area, base and nameplate display area, and clarify the scale and display focus of each module.

For material selection, taking display requirement and structural stability into consideration, we adopt easy-to-shape and stable sheet profiles to make the hull shell and main framework. Lightweight materials are processed to produce tiny parts including bolts, brackets and propeller components to control the total weight of the model. Meanwhile, color paste matching red, white and black tones is prepared in advance for subsequent multi-layer painting procedures.

2. Core Production Process and Assembly

1. Module separation and basic formingWe adopt modular processing and separately produce each component.Main hull section: Cutting, shaping and polishing are applied to restore the smooth streamline shape of submersible. The surface is finely treated to reproduce the segmented hull structure and outline features.External mechanical & tail assembly area: Independently fabricate the observation window frame, external hanging brackets and tail fin components. Fine parts such as fasteners and supports are assembled to fully show the external equipment layout of deep sea submersible.Base and marking: Custom solid white display base with reserved slots for metal nameplate and logo installation, reserving space for display lighting to optimize the overall exhibition effect.

2. Precision assembly and structural calibrationDuring assembly, fix the main hull on the base and calibrate the horizontal position with positioning fixtures to keep the whole submersible model in stable posture. Then assemble external brackets, observation window components, tail fins and other fittings step by step. Position verification is carried out after each group of assembly to ensure the relative position of all components consistent with the prototype. For external tiny mechanical assemblies, we adopt step-by-step assembly process. Fix the main structure first, then install small accessories, and reinforce connection points of delicate parts to prevent displacement during transportation.

3. Surface treatment and paintingAfter all components are assembled, polish the whole model surface carefully to eliminate assembly seams and burrs and achieve smooth texture. Then carry out layered painting work:Hull shell: The upper part is painted bright red and the main body is painted pure white. Light and shade color processing is used to highlight the three-dimensional sense of streamline hull.Deck and accessories: Tail fins, propeller and small mechanical parts are painted with black and red color separation to distinguish different components.Logo and text: Silk printing can be used to print marks on the hull surface with clear and wear-resistant patterns and characters.A transparent protective varnish is sprayed on the finished model to improve surface texture and reduce paint aging for long-time display.

4. Display optimizationInstall display lights on the base and adjust lighting angle to focus on the streamline hull and external mechanical structures, highlighting the sci-fi feature of deep sea submersible. Custom transparent dust-proof cover is available to block dust. Visitors can clearly view all structural details while realizing dust protection and good visual experience.

3. Project Result and Customer Feedback

The finished model achieves over 90% restoration degree. It fully reproduces the appearance of deep sea submersible, external mechanical layout and matching accessories. With exquisite workmanship and stable structure, it can bear exhibition transportation and long-term static display in exhibition halls. Customers comment that the deep submersible model has outstanding presentation effect in marine industry exhibitions and enterprise exhibition halls. It can directly show the overall structure and external equipment layout of exploration vehicle, helping visitors quickly understand the equipment design, and acts as an important display carrier for deep sea equipment presentation and business negotiation.

This project once again proves our professional capability in custom industrial display models. Adhering to the philosophy of realistic restoration and fine craftsmanship, we provide customized model solutions for deep sea exploration, marine technology and equipment manufacturing enterprises, and support visual display and promotion of various engineering projects.
